$32.00
Power 220 – 240VAC , 50Hz
Time Adjustable from 3sec to 30min
Light Sensing Range 10 – 1000lx @ 2.5m mounting height
Load Incandescent 1000W
Halogen / Fluorescent 300W
LED Lamp 200W
| Item | Value | Unit | Remarks |
|---|---|---|---|
| Nominal Voltage | 220-240VAC | V | |
| Wire diameter | 2*1.5 | mm² | |

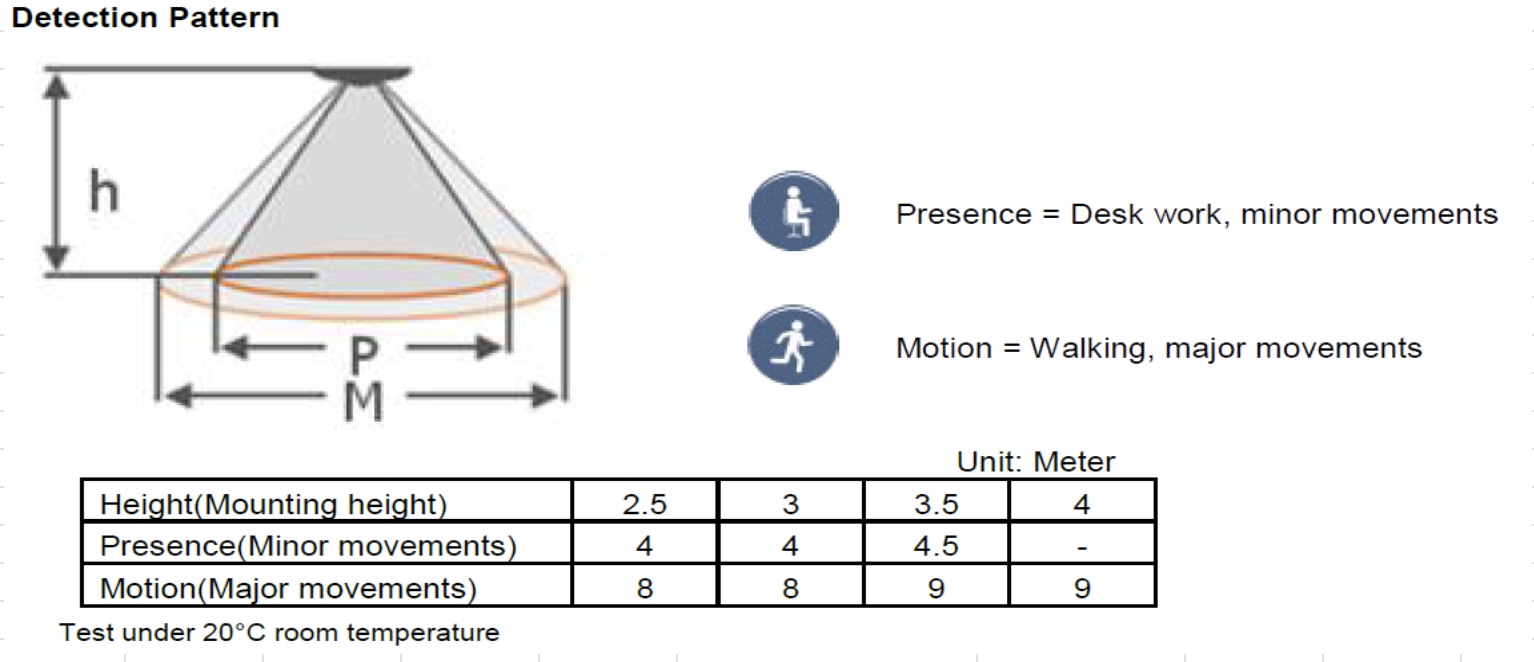

| Detection range | Ø8m | @ 2.5 m mounting height, (Person walking perpendicular to PIR) Please refer to the detection pattern |
|
| Light sensing range | 10 … 1000 | lx | |
| Ambient temperature range ta | -20…+40 | °C | |
| Storage temperature range | -20…+70 | °C | |
| Operating Humidity | 10…95 | % | |
| Storage Humidity | 0…95 | % | |
| Environmental rating | Indoor | ||
| IP rating | IP 20 | ||
| Housing material | Plastic | White | |
| Standards (tested and passed) | IEC/EN 60669-2-1 IEC/EN 55015 IEC/EN 61000 IEC/EN 61547 |
